| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhao |
| Model Number: | Customized |
| Minimum Order Quantity: | 50 units |
| Price: | Negotiatable |
| Packaging Details: | (1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 40000 per month |
| Style: | European Wire Mesh Container | Material: | Steel Q235 |
|---|---|---|---|
| Size: | Customized | Weight: | Customized |
| Color: | Customized | Options: | Lid, Castors, Pp Sheet |
| Usage: | Wine Industry, Transport, Storage, Warehouse And So On | Surface Treatment: | Galvanized Or Powder Coating |
| High Light: | metal mesh containers,warehouse wire container |
||

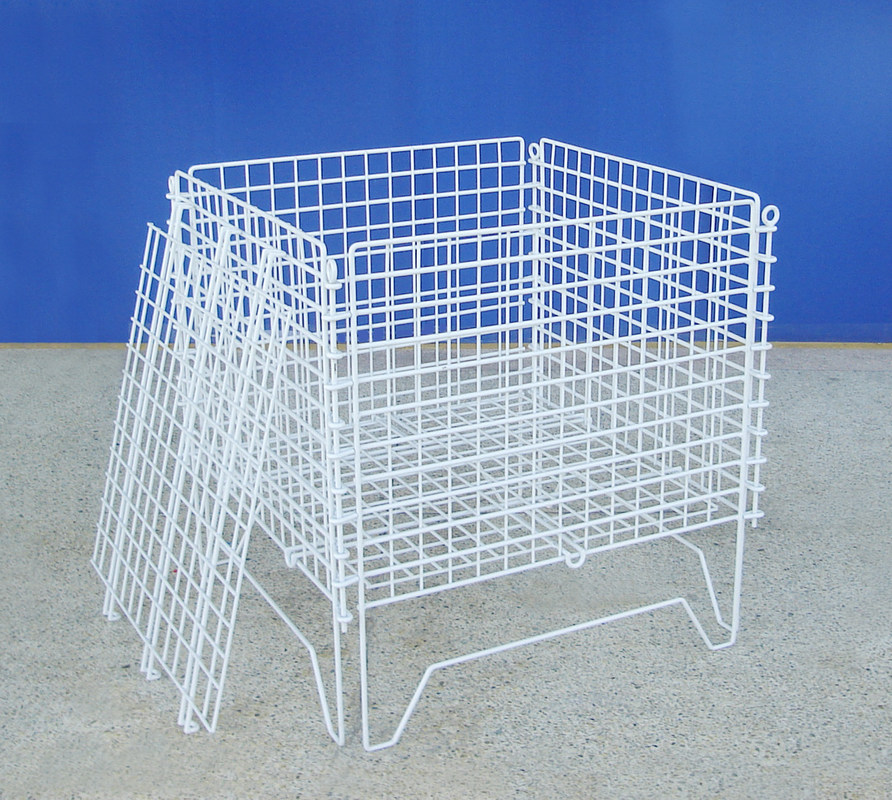

Zinc Coated Industiral Wire Container Foldable Storage Wine Bottle Cage Anti-rust
European wire mesh container
Foldable storage cages are recommended for applications requiring durability in a wide range of manufacturing and warehousing applications. The unique fold-down feature collapses this container to approximately 10 inches when not in use.
Features:
Application:
Nowaday, foldable storate bins play an important role in logistics industry, and they are widely used in various industries, especially in the fields of PET Preform bottles, wine bottles, vagetables, electronics, warehouse and logistics etc.
Regular production models
PET preform, water bottle, wine industry storage mesh box collapsible metal storage cage for sale
| Item No. | Exterior dimension | Interior dimension | Wire Guage | Folded | Loading Capacity | Loaded in 1x40' HQ Container |
| LxWxH(mm) | LxWxH(mm) | mm | mm | kg | ||
| W-1 | 1145x845x975 | 1045x800x835 | 10-5.0 | 1145x845x250 | 800 | 340 |
| W-2 | 1145x845x975 | 1045x800x835 | 10-5.0 | 1145x845x250 | 1000 | 340 |
| W-3 | 750x640x820 | 730x630x700 | 10-5.0 | 750x640x300 | 200 | 432 |
| W-4 | 1200x800x910 | 1120x755x765 | 10-5.0 | 1200x800x300 | 1000 | 250 |
| H-1 | 1600x1150x1075 | 1525x1070x830 | 10-5.0 | 1600x1150x360 | 1500 | 112 |
| H-2 | 1150x800x730 | 1080x720x500 | 10-5.0 | 1150x800x360 | 1000 | 224 |
| H-3 | 1370x900x920 | 1300x820x680 | 10-5.0 | 1370x900x360 | 1000 | 168 |
| H-4 | 1950x1150x1300 | 1875x1070x1030 | 10-5.0 | 1950x1150x360 | 1500 | 80 |
| H-5 | 1200x1000x930 | 1120x920x700 | 10-5.0 | 1200x1000x370 | 1200 | 168 |
| H-6 | 1600x1200x930 | 1525x1120x710 | 10-5.0 | 1600x1200x370 | 1500 | 72 |
| H-7 | 1412x1140x1200 | 1315x1095x1035 | 10-5.0 | 1412x1140x330 | 1000 | 128 |
| H-8 | 1170x1000x760 | 1100x910x580 | 10-5.0 | 1170x1000x320 | 1000 | 168 |
| Remark" acceptable customized |
||||||
FAQ:
1. What’s the kind of your company?
—We are manufacturing, we have our own factory and cooperation forwarder. You choose us at ease.
2. What’s the packaging of the products?
—Plastic banding stretch film wrapped, easy loading and unloading with standard forklift truck or pallet jack.
3. What’s the MOQ I can order?
—Quantity is variable depend on the size. Usually is 1*20GP.
4. I couldn’t find the right model from the products list, is custom size available?
—We build products to your specifications.
5. What’s your lead time?
—2-3 weeks against formal order and deposit.
6. What’s the loading capacity of your products?
—In general, we have light duty (100~300kg) model, medium duty (400~800kg) model and
heavy duty (1000~1700kg) model available for your choice.
7. Are there samples of your products available?
—We can supply samples for reference.
8. Where the products can be seen?
—Our factory located in Xiamen, where our products processed, finished, packed.
9. How long can the products are used?
—3~10 years warranty in case that
a) Proper handling during operation, correctly forklift handling while stacking/un-stacking
b) Overloading is prohibited
c) Environment request –indoor, dry and not humid circumstance, do not contact with any cor-rosive chemical material
(for an plated and powder coated products, no limitation for hot dip galvanized)
10. How to deal with if the products have quality problems?
—You can contact us freely if any questions and we’ll try our best to satisfy you.
