| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhao |
| Minimum Order Quantity: | 144 |
| Price: | Negotiable |
| Packaging Details: | Stretch film |
| Delivery Time: | 15~25 DAYS |
| Capacity: | 1500kg | Material: | Steel |
|---|---|---|---|
| Size: | 1200*1000*890 | Usage: | Auto Parts, Spare Parts, Granule |
| Surface Treatment: | Electro Galvanized | Type: | Wire Container |
| Scale: | Heavy Duty | Feature: | Collapsible And Stackable |
| High Light: | Electro Galvanized Collapsible Wire Container,Collapsible Wire Container Capacity 1500kg,Mild Steel Stackable Container |
||

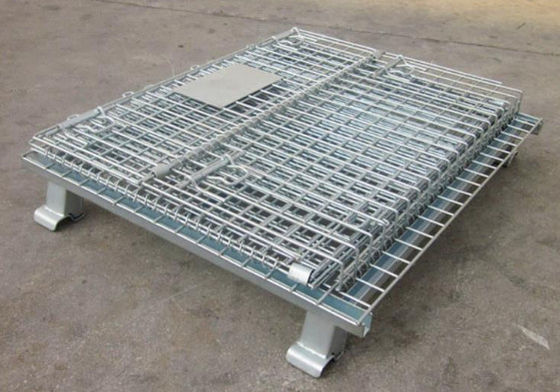

Capacity 1500kg Steel Industrial Wire Container 1200*1000*890 for Auto Parts
Product Description
Our comprehensive range of folding mesh cages are a cost effective folding pallet cage which can be used for a multitude of tasks. The folding pallet cages are made from steel bar and resistance welded at each intersection to make a very strong structure.
To use, simply fold up the sides and back to form the pallet cage structure and then the front folds up and is held in place with sliding latches. Once assembled, the units can then be stacked up to 4 high for maximum warehouse space efficiency.
The folding pallet cages can be folded flat once used to again save space especially on return vehicle journeys.
Specification
| Same design, defferent sizes | |||||
| Model No. | Exterior dimension |
Wire Guage |
Dimension of Grid |
Loading capacity |
Loaded in 1*40'GP |
| LxWxH(mm) | mm | mm | kg | sets | |
| C-1 | 1030x840x850 | 6 | 50*50 | 1300 | 470 |
| C-2 | 1030x840x850 | 6 | 50*50 | 800 | 470 |
| C-3 | 1230x1040x890 | 6.2 | 50*50 | 1700 | 320 |
| C-4 | 1230x1040x900 | 6.2 | 50*50 | 1200 | 320 |
| C-5 | 1230x1040x950 | 6.2 | 50*50 | 1700 | 320 |
| Material | Mild steel Q235 | ||||
| Available design | Top lid/bar runner/forklift guide/with inner divider | ||||
| Available accessories | Wheels/inner PP sheet or PP hollow sheet/bag | ||||
| Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot dip galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Product Features |
1. Collapsible-save space when not in use,ideal for return journeys ventilation and cleaness. 5. Easily moved around by forklift, even when fully loaded |
||||
Product advantages:
A. Stackable: Can be stacked to 4 layers, achieve three-dimensional storage;
B. Collapsible: Save space when not used;
C. Made of strong steel, welding with U channel steel at the bottom to guarantee the load capacity;
D. Use bolt structure, easy to open the door and fetch goods;
E. Surface treatment: Galvanization, powder coated or hot-dip galvanization
Bright and clean, corrosion resistance, long service life;
F. Operated with hydraulic trucks, forklifts, elevators and other handling equipment, simple operation, widely used.
