Portable Wire Container Storage Cages With Self Locking Handles

Basic Information
Place of Origin: China
Brand Name: Wuhao
Model Number: Customized
Minimum Order Quantity: 50 units
Price: Negotiatable
Packaging Details: (1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 40000 per month
Detail Information
Origin: China Material: Mild Steel, Iron, Q235
Model: Customized Options: Lid, Pallets, Castors, PP Sheet And So On
Color: Customized Stackability: 2-3 Layers
Application: Wine Industry, Transport, Storage, Warehouse And So On Finishing: Galvanized Or Powder Coating
High Light:

warehouse wire container


wire mesh storage boxes

Product Description

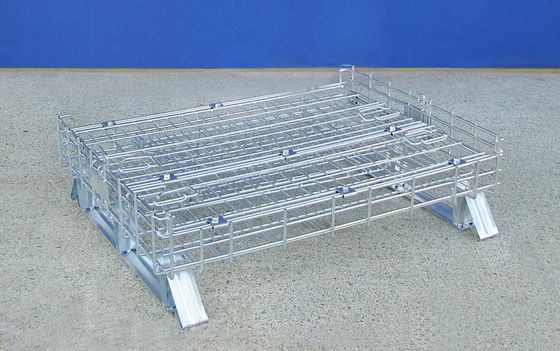

Metal Bin Euro Bottle Wire Mesh Container Collapsible Bottle Storage Pallet Cage


Wine wire container


The metal cage for wineries as well as the other products made by Logistica Paggiola is very solid, extremely resistant and is ideal for the storage, the handling and the transport - the perfect metal cages for wine bottles. It's a folding and stackable wire mesh cage for Bordeaux wine bottles. The metal cage for winery thanks to the long feet can be easily handed by the fork lift for the distribution in the warehousing. The metal cage for wineries can be folded and stacked both when is opened and folded. His stacking capacity is 3+1 (static) and 1+1 (dynamic).

  • Stackable: 4/1 static
  • Stackable: 1/1 dynamic
  • Service load: 200kg, 800kg, 1000kg...
  • Reinforced bass and panels
  • Front holding:half open door
  • Identification plates
  • Grippable on 4 sides
  • Self-locking handles

Regular production models


Item No. Exterior dimension Interior dimension Wire Guage Folded Loading Capacity Loaded in 1x40' HQ Container
LxWxH(mm) LxWxH(mm) mm mm kg
W-1 1145x845x975 1045x800x835 10-5.0 1145x845x250 800 340
W-2 1145x845x975 1045x800x835 10-5.0 1145x845x250 1000 340
W-3 750x640x820 730x630x700 10-5.0 750x640x300 200 432
W-4 1200x800x910 1120x755x765 10-5.0 1200x800x300 1000 250
H-1 1600x1150x1075 1525x1070x830 10-5.0 1600x1150x360 1500 112
H-2 1150x800x730 1080x720x500 10-5.0 1150x800x360 1000 224
H-3 1370x900x920 1300x820x680 10-5.0 1370x900x360 1000 168
H-4 1950x1150x1300 1875x1070x1030 10-5.0 1950x1150x360 1500 80
H-5 1200x1000x930 1120x920x700 10-5.0 1200x1000x370 1200 168
H-6 1600x1200x930 1525x1120x710 10-5.0 1600x1200x370 1500 72
H-7 1412x1140x1200 1315x1095x1035 10-5.0 1412x1140x330 1000 128
H-8 1170x1000x760 1100x910x580 10-5.0 1170x1000x320 1000 168
Remark" acceptable customized





It is widely used in different field, above all in the cellars, due to the fact that cage for wineries is perfectly designed for the storage of the wines bottles. One on the top of the other. Optimize the room in the cellars. No only bright silver galvanized. Color galvanized also available. It is also

applied in PET preform, water bottle, wine industry storage mesh box collapsible metal storage cage for sale and industry needs.
