| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhao |
| Model Number: | A1-800 |
| Minimum Order Quantity: | 50 units |
| Price: | Negotiatable |
| Packaging Details: | (1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 40000 per month |
| Product Name: | Wire Mesh Container | Material: | Steel Q235 |
|---|---|---|---|
| HS Code: | 7326209000 | Dimension: | 800*600*640mm |
| Surface Treatment: | Zinc Plated/ Hot Dip Galvanized/ Powder Coating | Application: | Material Handling, Transport, Storage, Warehouse And So On |
| High Light: | mesh pallet cages,wire mesh storage boxes |
||

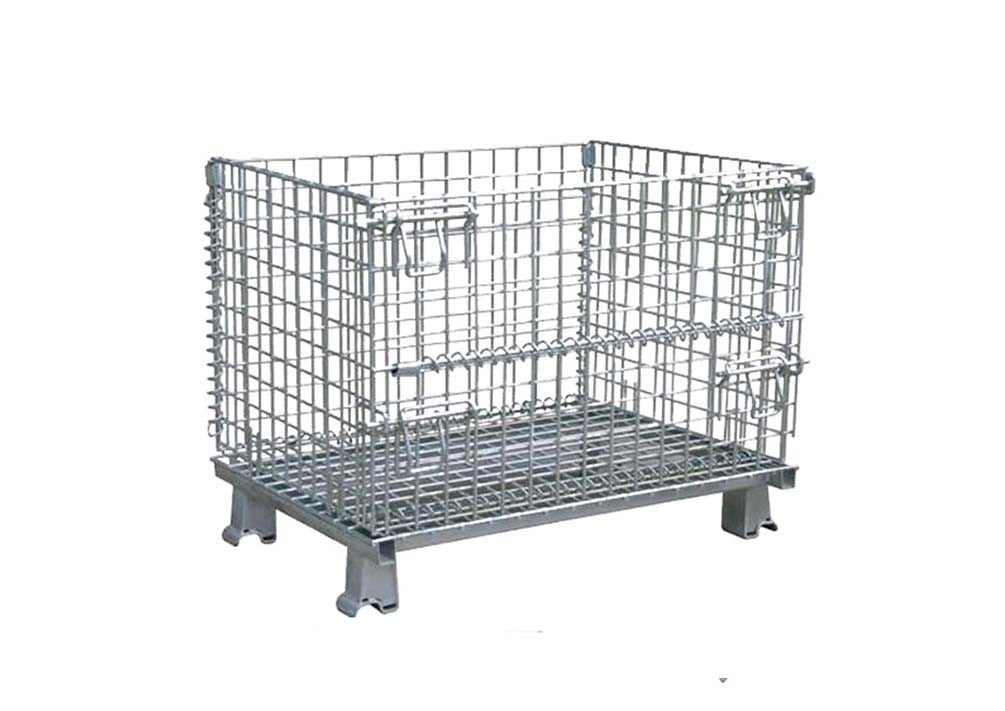

Stackable Wire Mesh Container Metal Bin Storage Cage Foldable
Wire mesh container
The bottom is adopted the U-channel steel to strengthen the loading intensity.The special foot base structure assures the stability of wire container when loading and heaping.Spiral spring hinge connects the reticular pieces, which makes the wire container can be folded when they are idle.The top is fixed by clamp that assures the intensity of the hinge.Auxiliary strengthened structure assures the stability of wire container when heaping.Adopting the multipoint spot welding technique assures the wire container durable. Individual bolt assures the easy opening of the door when the wire container is heaped
This product is made of welded steel wire. To weld U-shaped stiffener at bottom better for strengthening structure itself. To place cardboard in it so as to protect fragile goods or easily-scratched-surface goods. If assisted by transportation equipment, it can be used in logistic steps, such as transportation, load and unload, and storage.
Regular Sizes
| Regular models of wire container | |||||||
| Item No. | Specification | Wire diameter | Mesh gauge | Load capacity | Self-weight | Feet height | |
| External size (L*W*H)(mm) | Internal size (L*W*H)(mm) | (mm) | (mm) | (kg) | (kg)±2% | (mm) | |
| A1-800 | 800*600*640 | 750*550*500 | 5.8 | 50*50 | 800 | 29 | 100 |
| A1-700 | 5.6 | 50*50 | 700 | 27.8 | |||
| A1-600 | 5.3 | 50*50 | 600 | 23 | |||
| A1-400 | 4.8 | 50*50 | 400 | 20.6 | |||
| A2-600 | 5.8 | 50*100 | 600 | 25 | |||
| A3-1000 | 6.3 | 50*50 | 1000 | 32 | |||
| B1-1200 | 1000*800*840 | 950*750*700 | 5.8 | 50*50 | 1200 | 44.8 | 100 |
| B1-1000 | 5.6 | 50*50 | 1000 | 42.8 | |||
| B1-800 | 5.3 | 50*50 | 800 | 35.2 | |||
| B1-600 | 4.8 | 50*50 | 600 | 30.8 | |||
| B2-1000 | 5.8 | 50*100 | 1000 | 39 | |||
| B3-1500 | 6.3 | 50*50 | 1500 | 51 | |||
| C1-1500 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 60.8 | 100 |
| C1-1300 | 5.6 | 50*50 | 1300 | 55.8 | |||
| C2-1000 | 5.8 | 50*100 | 1000 | 53.8 | |||
| C2-800 | 5.6 | 50*100 | 800 | 48.4 | |||
| C3-2000 | 6.3 | 50*50 | 2000 | 68 | |||
| Remark: the size, wire diameter, mesh gauge can be customized as your design. | |||||||
Product Advantage:
1. Used in warehouse, logistics, recycling industry widely.
2. Welded wire firm structure
3. Electro galvanized finish or Powder coated finish is available
4. Stackable, collapsible, folds flat to save space
5. Drop gate for easy access when stacked
6. Easy forklift access from all sides
7. Lowest maintenance cost
8. Product can be customized specification or OEM
9. Available accessories: casters, top lids, shelves,inner dividers, forklift guide,plastic hollow board and card holders
